OBDSTAR  |  SKU: TCM-020 / 7.52.2

OBDSTAR (TCM-020) | GM (6T70/75/80) 23-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car

€24,75 incl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

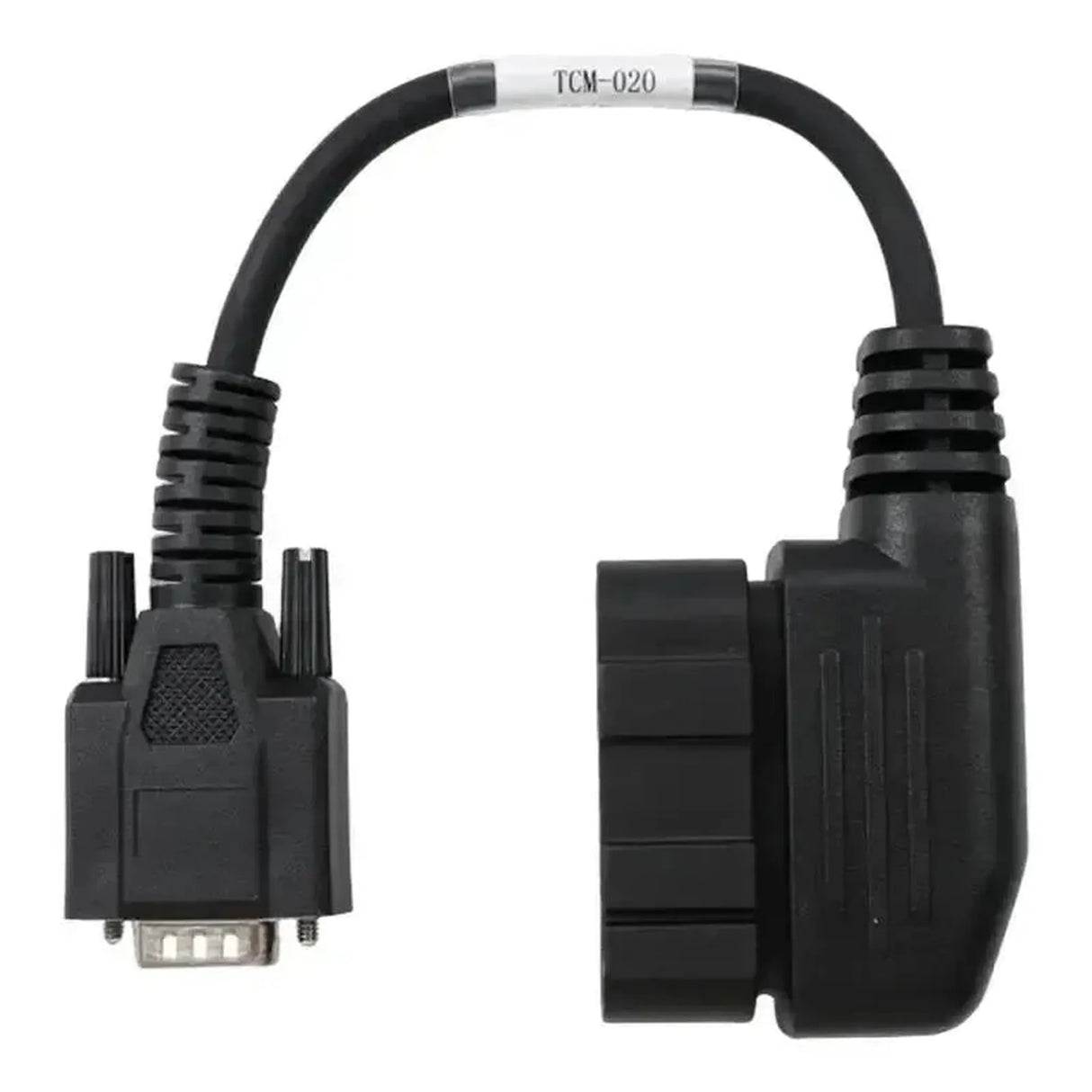

The OBDSTAR TCM-020 Adapter Cable is specifically designed to connect a GM 23-pin TCM connector (Transmission Control Module) to a standard 15-pin DB15 connector. This cable facilitates a direct communication line with transmission units of the 6T70, 6T75, and 6T80 types, which are widely used in various passenger cars. The design is exclusively compatible with OBDSTAR diagnostic devices and programmers to perform bench-mode operations directly on the module.

The wiring ensures stable signal transmission between the hardware interface and the transmission module outside the vehicle. Thanks to the fixed pin configuration, the required power, ground, and data lines, including the CAN-bus signals, are correctly routed to the DB15 interface. This eliminates incorrect connections with loose pins and guarantees safe data exchange during cloning, flashing, or reading of the transmission control unit.

ADVANTAGES

✔ Direct and reliable connection to 6T70, 6T75, and 6T80 transmission modules.

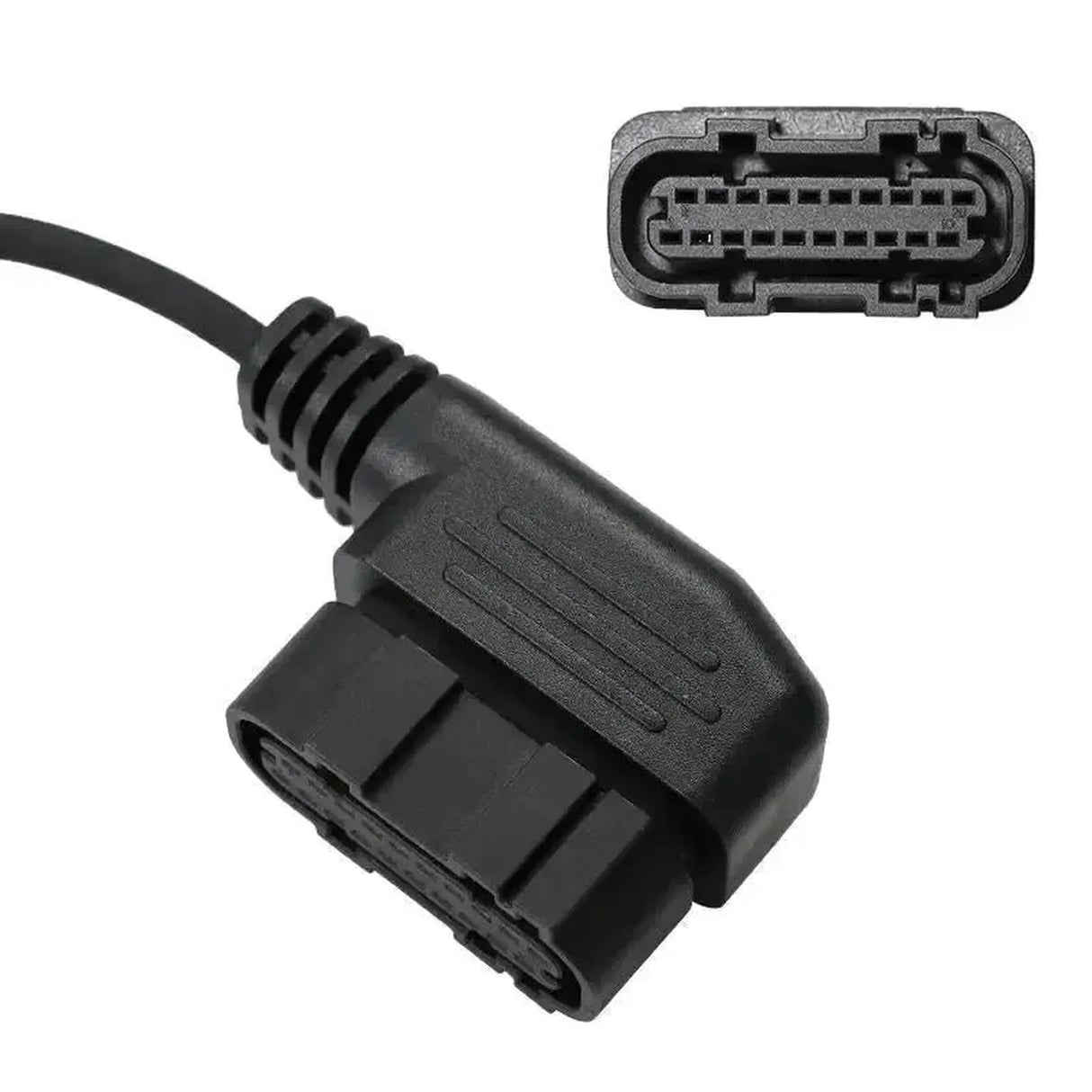

✔ Prevents the use of loose pins thanks to a molded 23-pin TCM connector.

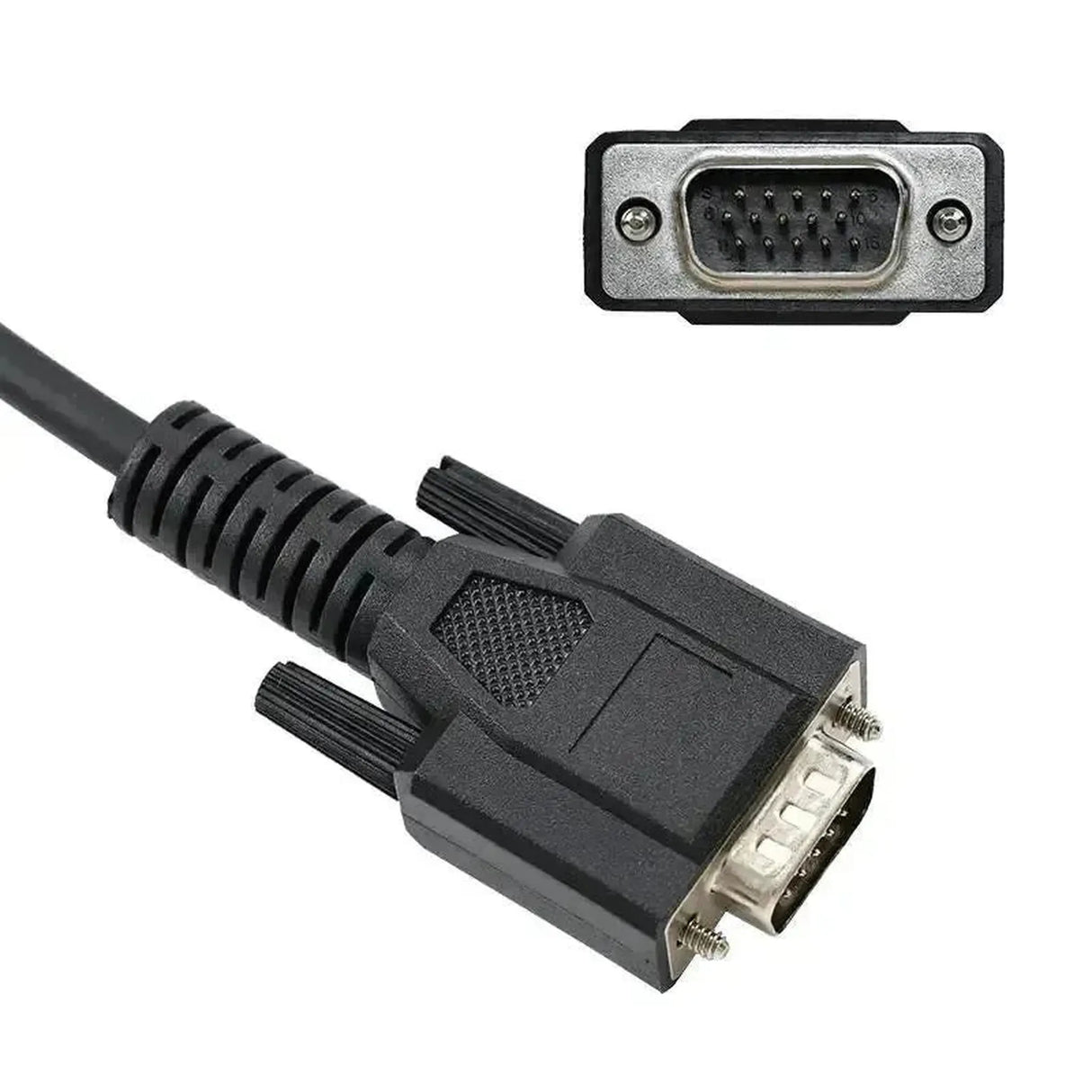

✔ Secure data transfer via the robust DB15 connector to the interface.
✔ Targeted routing of CAN-bus data for bench operations.

KEY POINTS

✕ Works exclusively with OBDSTAR diagnostic devices and programmers, not compatible with other brands.
✕ Requires disassembly or physical access to the TCM for connection in bench setup.
✕ Only designed for the specified 6T-series transmissions, not for older 4-speed automatics.

Applications and functionalities

This adapter cable supports specific technical procedures on the transmission control unit when connected to compatible OBDSTAR equipment.

  • TCM cloning: Safely reading and writing flash and EEPROM data from the transmission module.
  • Bench diagnosis: Diagnosing the control unit directly on the workbench, without it being installed in the vehicle.
  • Calibration and flashing: Updating or restoring the software on the 6T70, 6T75, or 6T80 module.
  • Pin-out protection: Prevents short circuit risks thanks to the fixed 23-pin to 15-pin configuration instead of loose wires.

Compatible vehicles and applications

This TCM adapter cable is developed for vehicles equipped with the GM 6T70, 6T75, or 6T80 (and co-developed equivalents) automatic transmission. These transmissions are used in the brands and models listed below.

Buick:

  • Enclave: (2008 - 2017)
  • LaCrosse: (2010 - 2016)

Cadillac:

  • SRX: (2010 - 2016)
  • XTS: (2013 - 2019)

Chevrolet:

  • Equinox: (2008 - 2017)
  • Traverse: (2009 - 2017)

Ford:

  • Edge: (2007 - 2018)
  • Explorer: (2011 - 2019)

GMC:

  • Acadia: (2007 - 2016)
  • Terrain: (2010 - 2017)

Lincoln:

  • MKT: (2010 - 2019)
  • MKX: (2007 - 2018)

Mazda:

  • CX-9: (2007 - 2015)

Mercury:

  • Sable: (2008 - 2009)

Pontiac:

  • Torrent: (2008 - 2009)

Saturn:

  • Outlook: (2007 - 2010)
💡
Good to know: Before starting work in bench mode, check whether the OBDSTAR equipment supplies the correct power voltage to ensure successful communication with the TCM.

Package Contents

  • 1x OBDSTAR (TCM-020) | GM (6T70/75/80) 23-pin TCM – 15-pin DB15 Adapter Cable | Passenger Car
