OBDSTAR  |  SKU: TCM-005 / 7.50.2

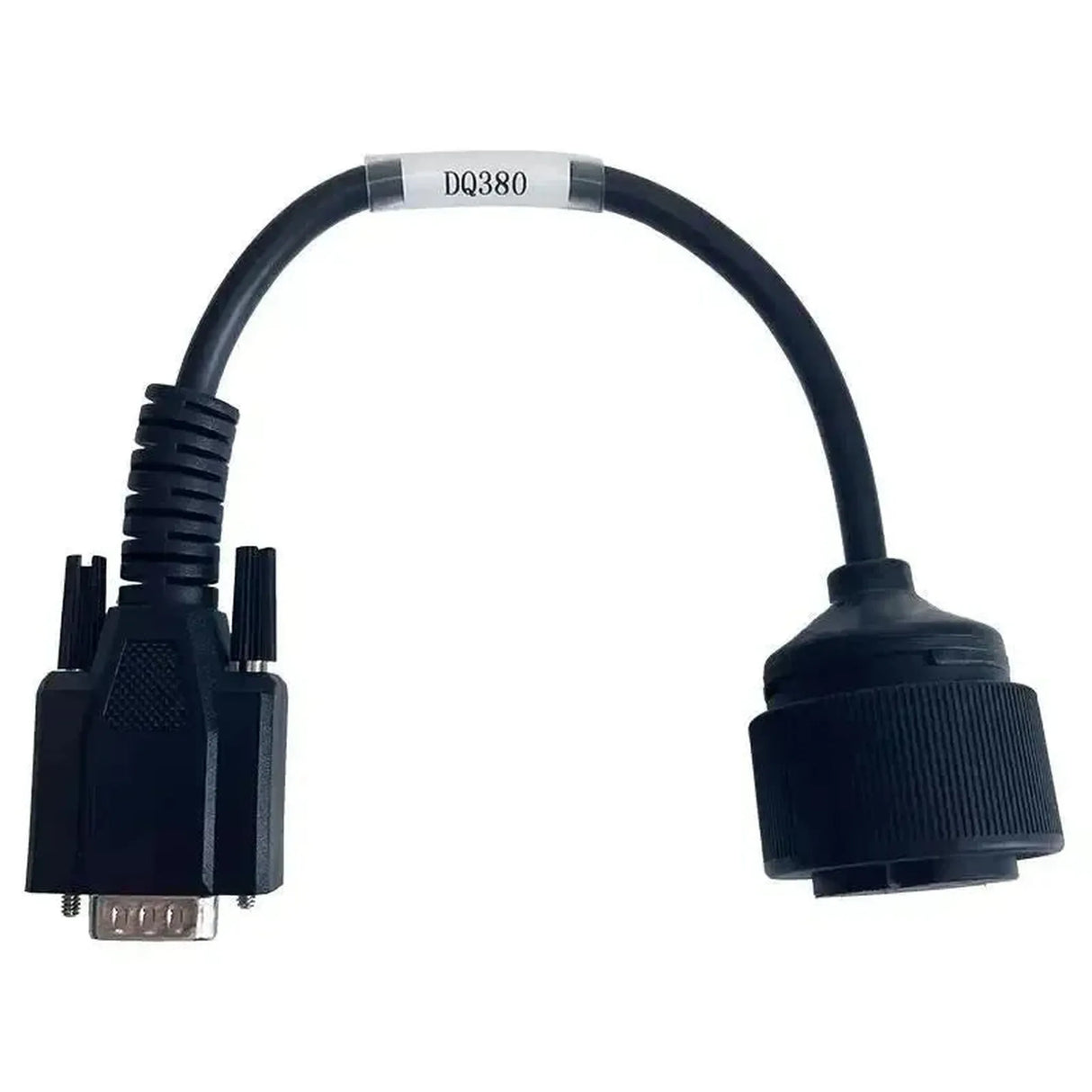

OBDSTAR (TCM-005) | Bosch (DQ380/381/500) 16-pins TCM – 15-pins DB15 Adapter Cable | Passenger Car

€24,75 incl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

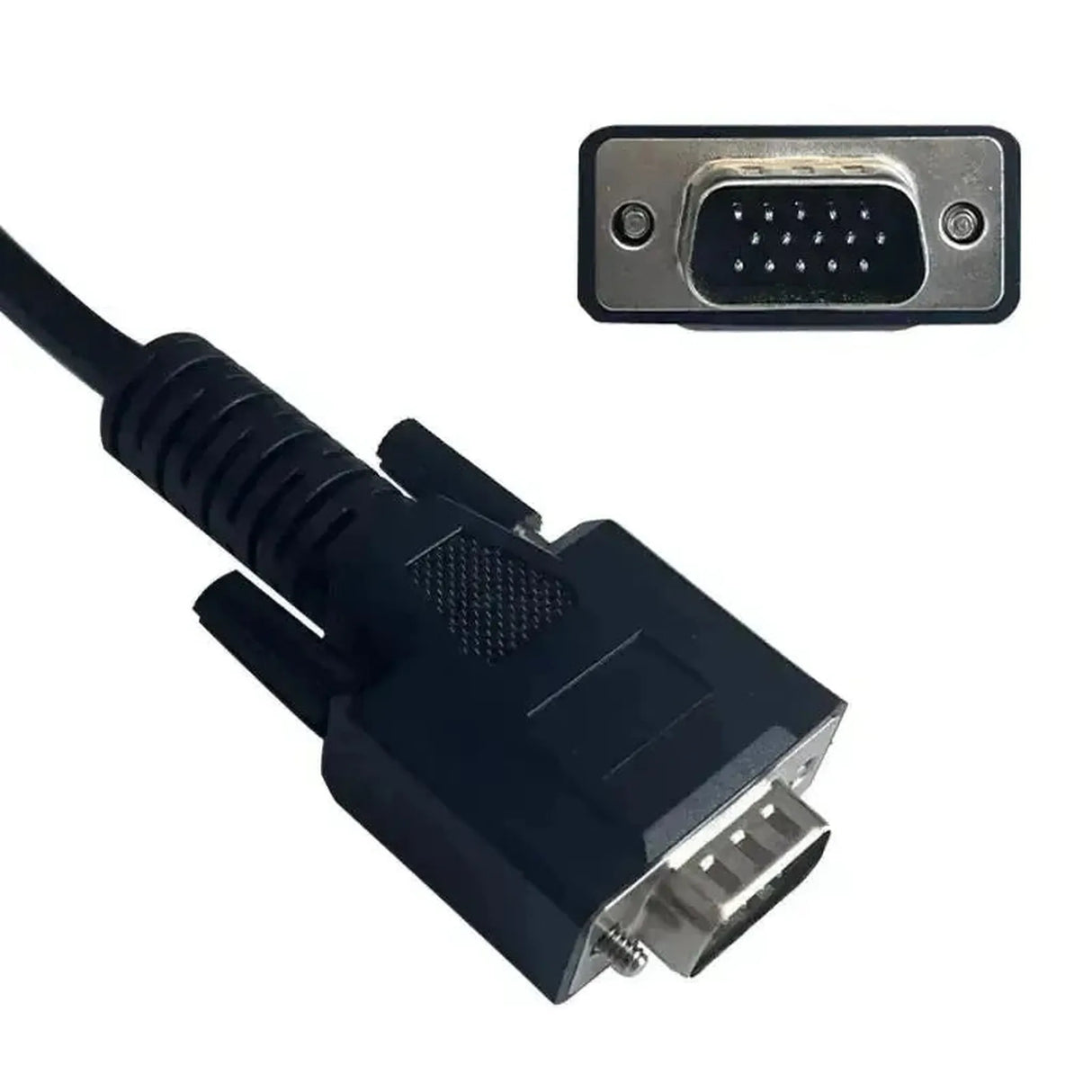

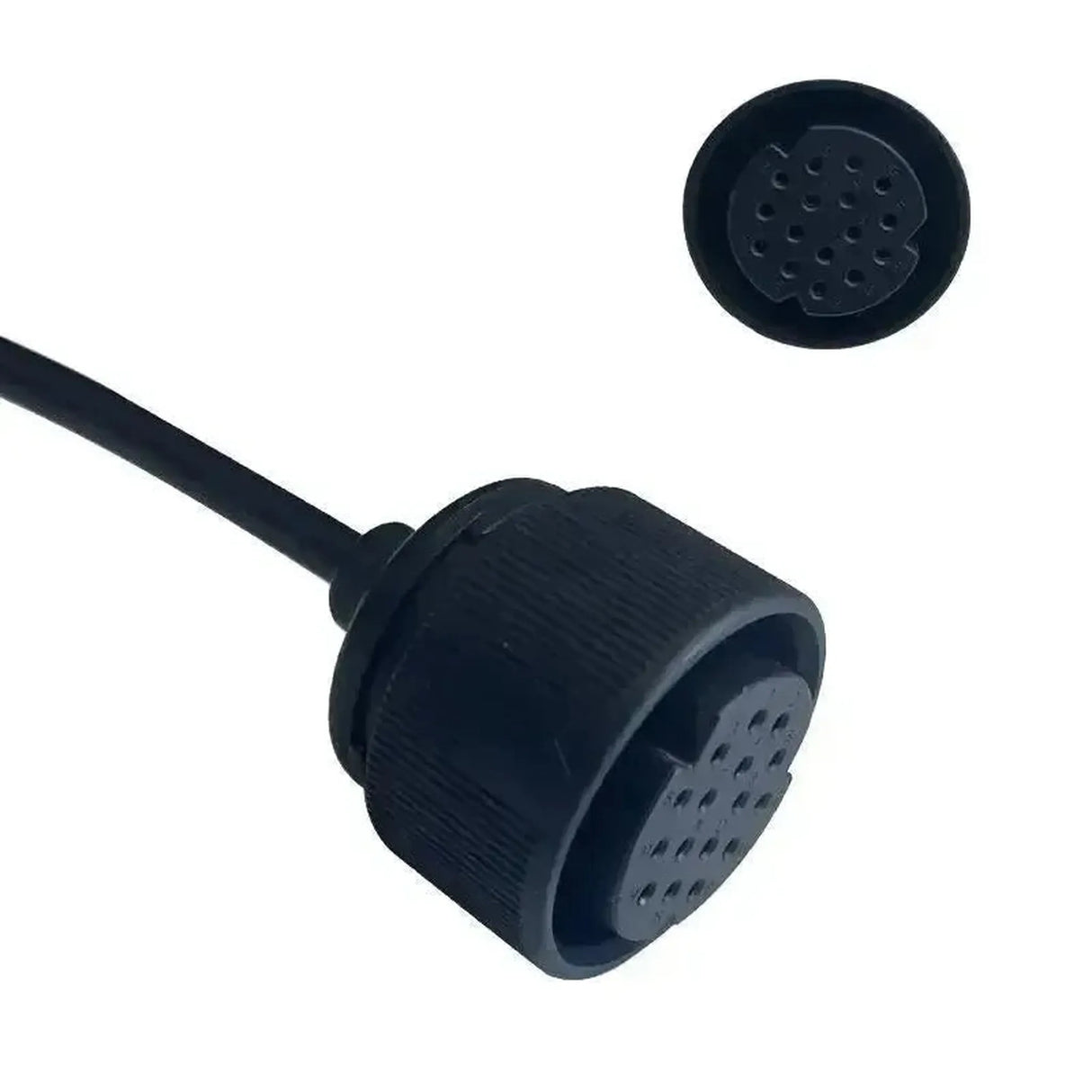

The OBDSTAR TCM-005 adapter cable is specifically designed for directly connecting Bosch DQ380, DQ381, and DQ500 (0DE) transmission control units (TCM) with OBDSTAR readers and programmers. The adapter cable uses a specific 16-pin round TCM connector on the vehicle side and a standardized 15-pin DB15 connector on the tool side. This configuration allows technicians to connect the transmission mechatronics on the workbench without accessing the vehicle through the regular diagnostic port. Please note that this cable only works with systems from the OBDSTAR brand.

This wired interface facilitates direct and stable signal transmission for advanced transmission diagnostics and flash procedures. By physically isolating the TCU and connecting it via the DB15 interface, a reliable communication line is established for reading and writing internal memory chips. This ensures that complex operations such as EEPROM cloning procedures and calibration data learning are performed safely, completely independent of the vehicle's CAN bus network.

ADVANTAGES

✔ Enables direct communication with Bosch DQ380, DQ381, and DQ500 TCUs via a bench setup.
✔ Equipped with a model-specific 16-pin TCM connector for a secure and interference-free pinout.
✔ Uses a universal 15-pin DB15 connector for seamless hardware integration with OBDSTAR programmers.
✔ Prevents communication errors by bypassing the vehicle's internal CAN gateway during read and write operations.

IMPORTANT NOTES

✕ Only compatible with OBDSTAR readers and programmers, does not work with equipment from other brands.
✕ Requires disassembly or direct physical access to the mechatronics unit on or outside the transmission.
✕ Only suitable for specific DSG transmission models (DQ380/381/500) and not usable for other automatic transmissions.

Applications and functionalities

This adapter cable supports various specialized tasks on the transmission control unit, only in combination with compatible OBDSTAR bench equipment.

  • TCU Cloning: Complete reading and writing of internal memory data for safe cloning or replacement of a defective transmission module.
  • Bench Programming: Facilitates direct communication and data transfer with the control unit without involving the vehicle's central gateway.
  • Read and Clear Fault Codes: Enables targeted diagnostics of the disconnected mechatronics for in-depth troubleshooting.
  • Data Acquisition: Ensures stable and safe reading of calibration, EEPROM, and Flash data via a fixed wired connection.

Compatible vehicles and applications

This adapter cable is designed for use with specific VAG models equipped with a Bosch 7-speed DSG transmission system.

Volkswagen (VAG Group):

  • All models equipped with Bosch DQ380 (0DE) transmission: (From approx. 2015)
  • All models equipped with Bosch DQ381 (0DE) transmission: (From approx. 2017)
  • All models equipped with Bosch DQ500 (0DE) transmission: (From approx. 2009)
💡
Good to know: Always ensure that the external power supply of your OBDSTAR programmer is properly connected and stabilized before starting the flash procedure to prevent irreversible data damage to the transmission control unit.

Package Contents

  • 1x OBDSTAR (TCM-005) | Bosch (DQ380/381/500) 16-pin TCM – 15-pin DB15 Adapter Cable | Passenger Car
