OBDSTAR | SKU: ECU-Master-C-Bundle

OBDSTAR ECU Master | Programmer

€374,95 incl.

€309,88 excl.

Software-pakket

ECU Master Hardware (Standalone) ECU Master Configuratie A (Personenauto) ECU Master Configuratie B (Motorfiets) ECU Master Configuratie C (Vrachtwagen) ECU Master Configuratie D (Airbag, incl. extra hardware) ECU Master Configuratie ABCD (Alle voertuigtypen)

Product variants

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

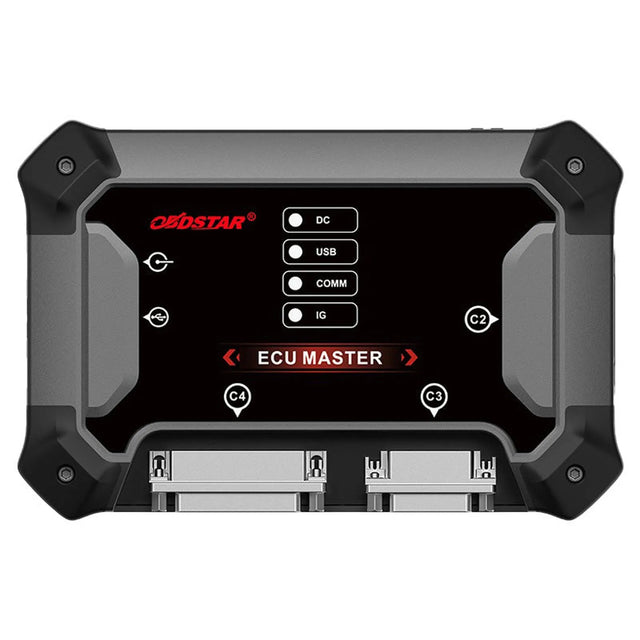

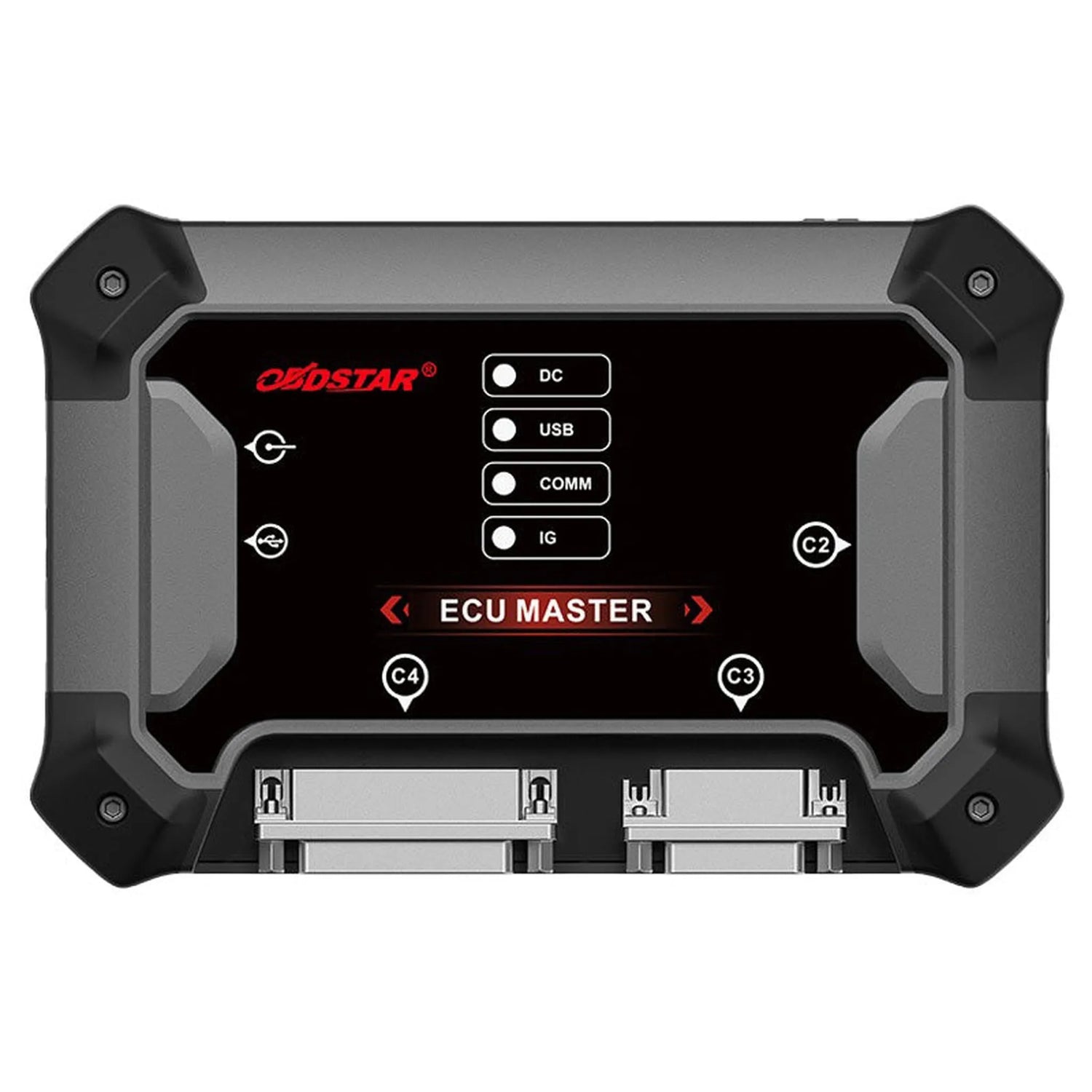

The OBDSTAR ECU Master is an ECU programmer developed for reading, writing, and editing control units in passenger cars, electric vehicles, motorcycles, and heavy equipment. The device supports work on ECM, TCM, BCM, BMS, VCU, and other body and chassis modules, and is available in three configurations: ECU MASTER A (Passenger Car and EV), ECU MASTER B (Motorcycle), and ECU MASTER C (HD/heavy equipment). Thanks to the modular design, the technician can choose the configuration that fits their workshop focus.

The ECU Master connects to the control unit via the included M001C main cable, the BENCH-C V1 ECU Fisher bench cable, and the C4-10 Adapter for JTAG and BDM operations. For component-level connections, the W004, W005, and W006 read/write solder wires are used in combination with the jumper wires (8 specifications) and the 3-in-1 jumper extension cable. Communication with the PC software runs via the USB-A to USB-B cable, allowing the technician to read, edit, and write back ECU data on a bench setup.

ADVANTAGES

✔ Available in three configurations (A, B, C) so the technician can choose the exact coverage for passenger car, motorcycle, or heavy equipment.

✔ C4-10 Adapter supports both JTAG and BDM modes for reading and writing data at chip level.

✔ Included jumper wires in 8 versions cover various pinout configurations on the bench.

✔ ECU MASTER A covers ECM and TCM as well as BMS and VCU for work on electric vehicles.

ATTENTION POINTS

✕ Soldering techniques required when using the W004, W005, and W006 solder wires for component-level connections.

✕ The three configurations are not interchangeable: ECU MASTER A does not support engine or HD functions and vice versa.

✕ Work is performed on a bench setup; the ECU must be removed from the vehicle for this.

Applications and functionalities

The OBDSTAR ECU Master supports the following tasks on control units:

ECM operations: Reading and writing engine management modules for tuning, repair, and cloning within all three configurations.
TCM operations: Working on transmission modules of passenger cars (configuration A) and HD vehicles (configuration C).
BCM and chassis modules: Reading and writing body, chassis, and other modules for passenger cars and HD vehicles.
BMS and VCU operations: Access to battery management and vehicle control units of electric vehicles via configuration A.
Motorcycle ECM: Reading and writing engine management on motorcycles via configuration B.
JTAG operations: Reading and writing data via the JTAG interface with the C4-10 Adapter.
BDM operations: Reading and writing data via BDM mode with the C4-10 Adapter.
Component-level operations: Reading and writing via solder connections with the W004, W005, and W006 wires for situations where standard bench connection is insufficient.

Special features and capabilities

The ECU Master has several features that distinguish it within the ECU programming segment:

Modular configuration choice: One platform with three hardware configurations (A, B, C) allowing the workshop to tailor the investment to the actual vehicle mix.
Combined JTAG/BDM Adapter: The C4-10 Adapter serves both debug interfaces, making separate adapters for each mode unnecessary.
3-in-1 jumper extension cable: Enables extending and combining jumper connections without extra loose wiring.

Package Contents

1x OBDSTAR ECU Master | Programmer
1x 14V / 60W charger
1x M001C main cable
1x USB-A to USB-B cable
1x BENCH-C V1 ECU Fisher bench cable
1x Set of jumper wires (8 specifications)
1x 3-in-1 jumper extension cable
1x C4-10 Adapter (JTAG/BDM)
1x W004 read/write solder wire
1x W005 read/write solder wire
1x W006 read/write solder wire

💡

Good to know: Before purchase, check which configuration (A, B, or C) fits the vehicle types in your workshop. Support per software function (ECM, TCM, BMS/VCU, BCM/CHASSIS) varies by configuration and directly determines which tasks you can perform with the device.

Technical specifications

Specification	Description
Product brand	OBDSTAR
Product model	ECU Master
Product type	ECU programmer
Available configurations	ECU MASTER A (Passenger Car, EV), ECU MASTER B (Motorcycle), ECU MASTER C (HD)
Supported modules (A)	ECM, TCM, BODY/CHASSIS/OTHER, BMS/VCU/OTHER
Supported modules (B)	ECM (Motorcycle)
Supported modules (C)	ECM, TCM, BODY/CHASSIS/OTHER (HD)
Debug interfaces	JTAG and BDM (via C4-10 Adapter)
Connection to PC	USB-A to USB-B
Power supply	14V / 60W Adapter
