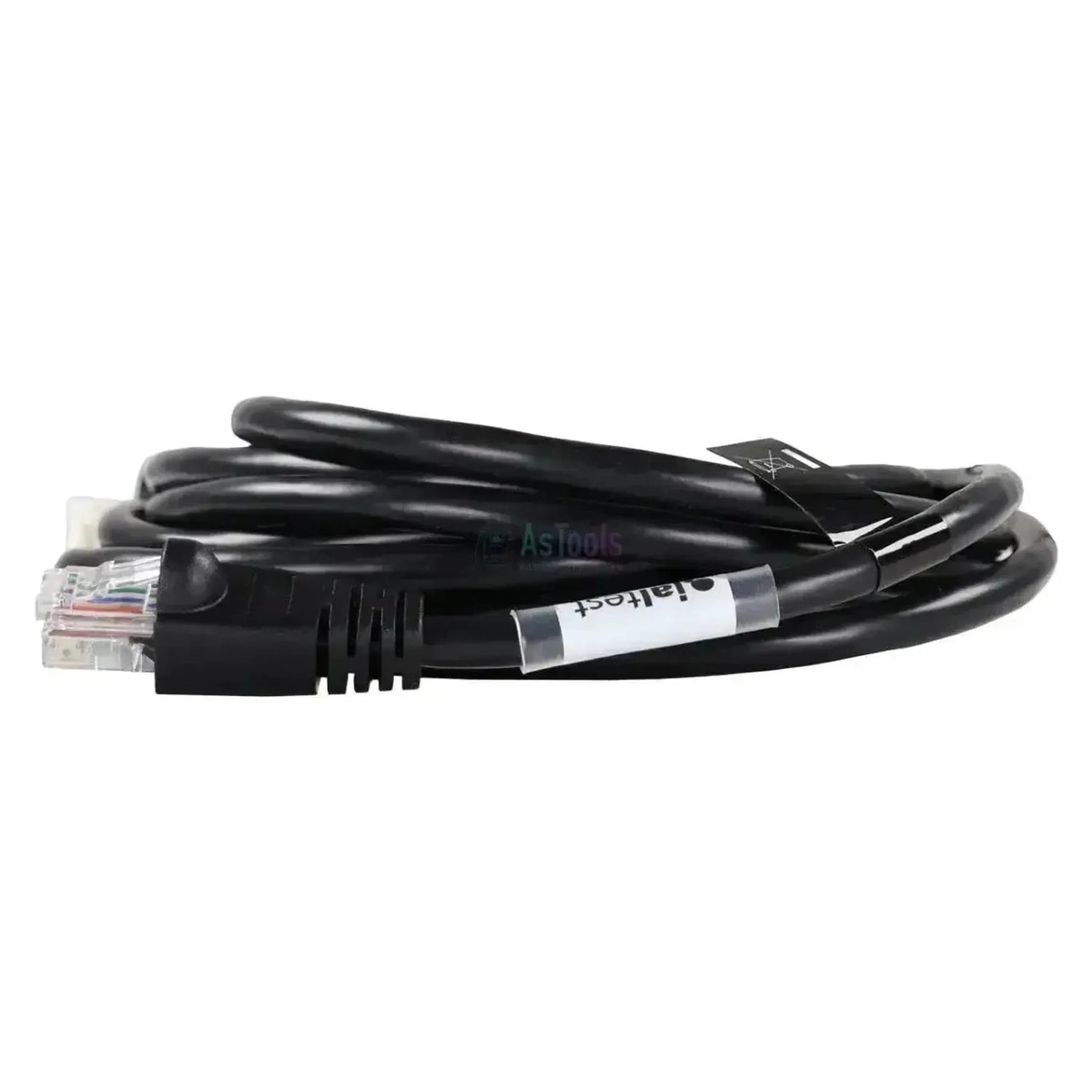

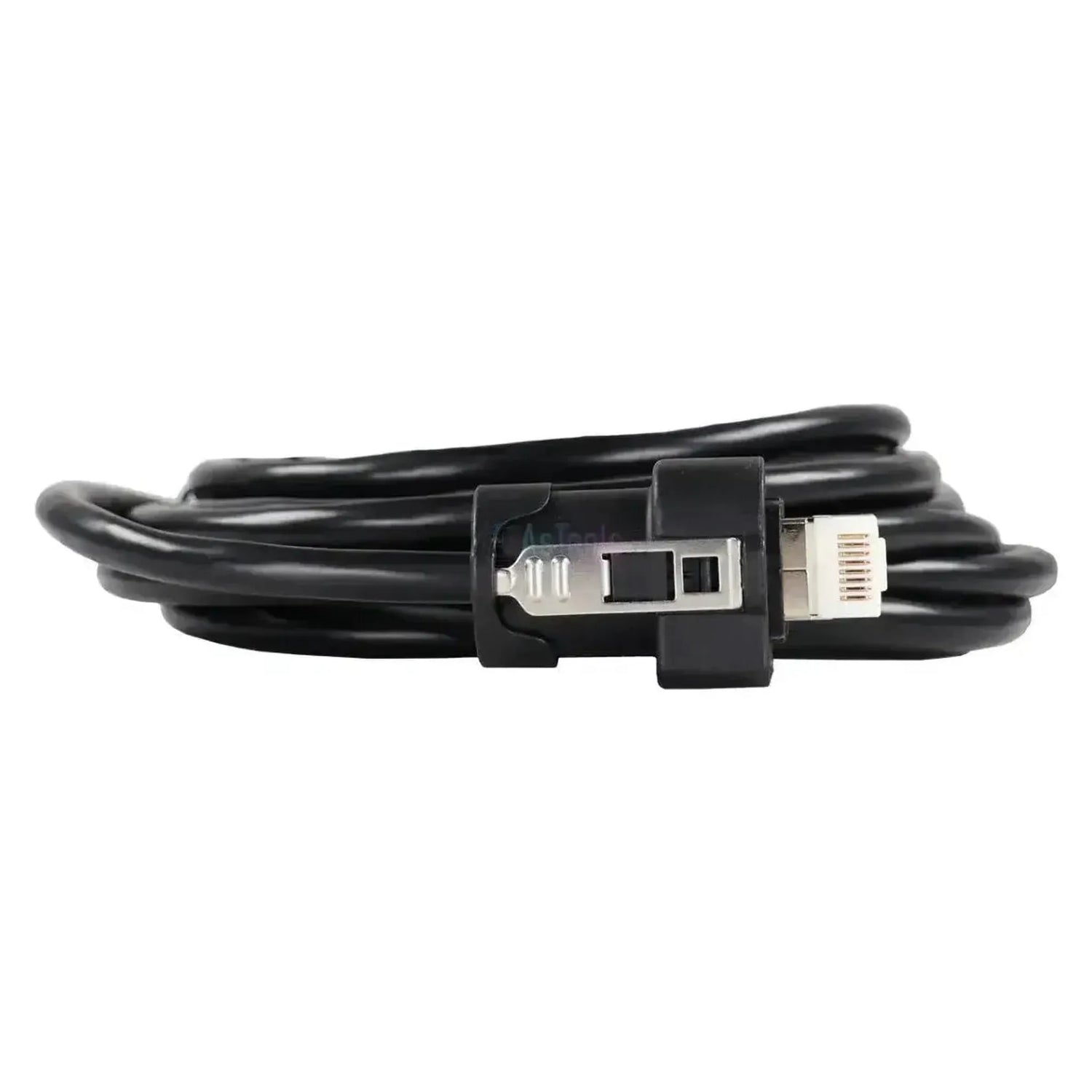

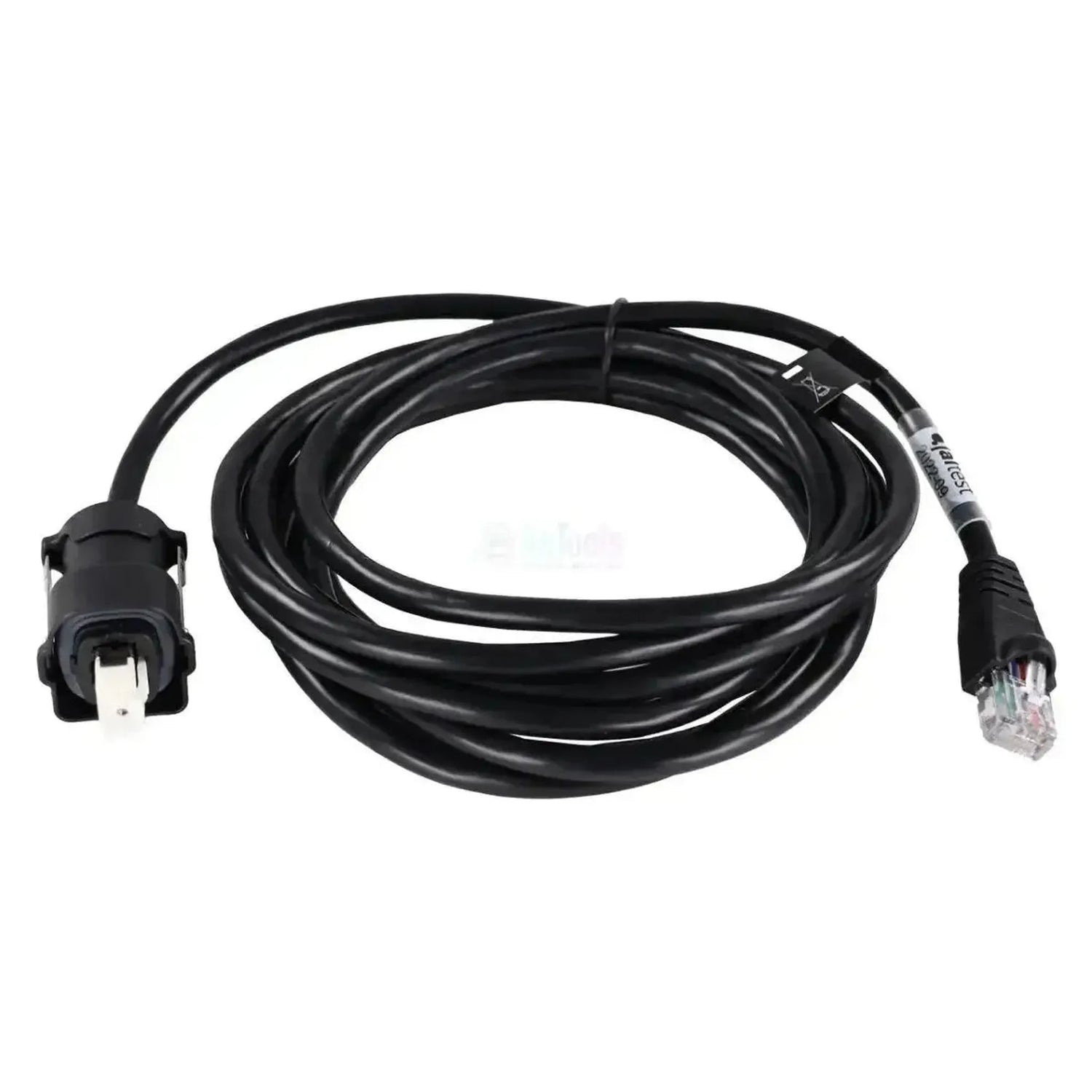

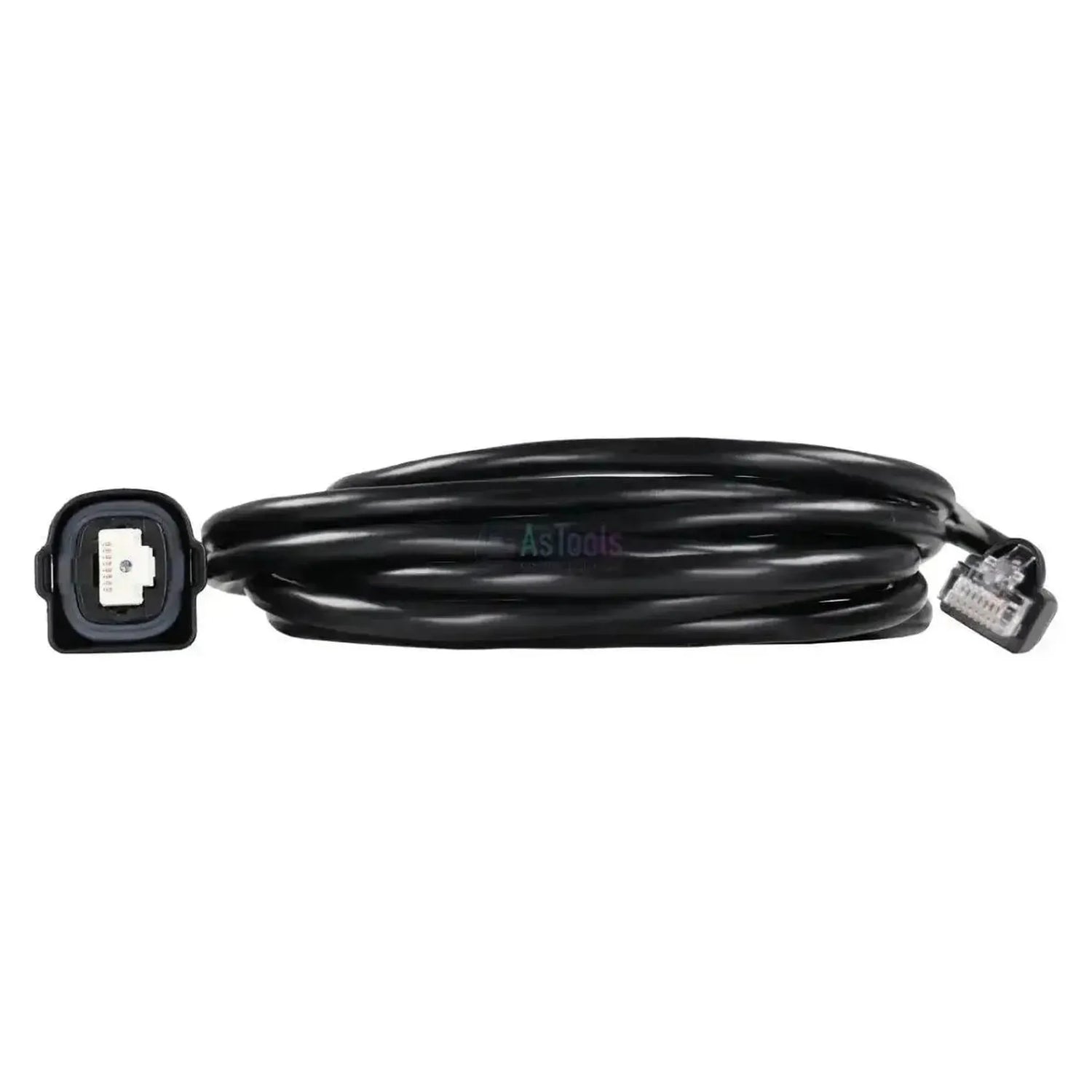

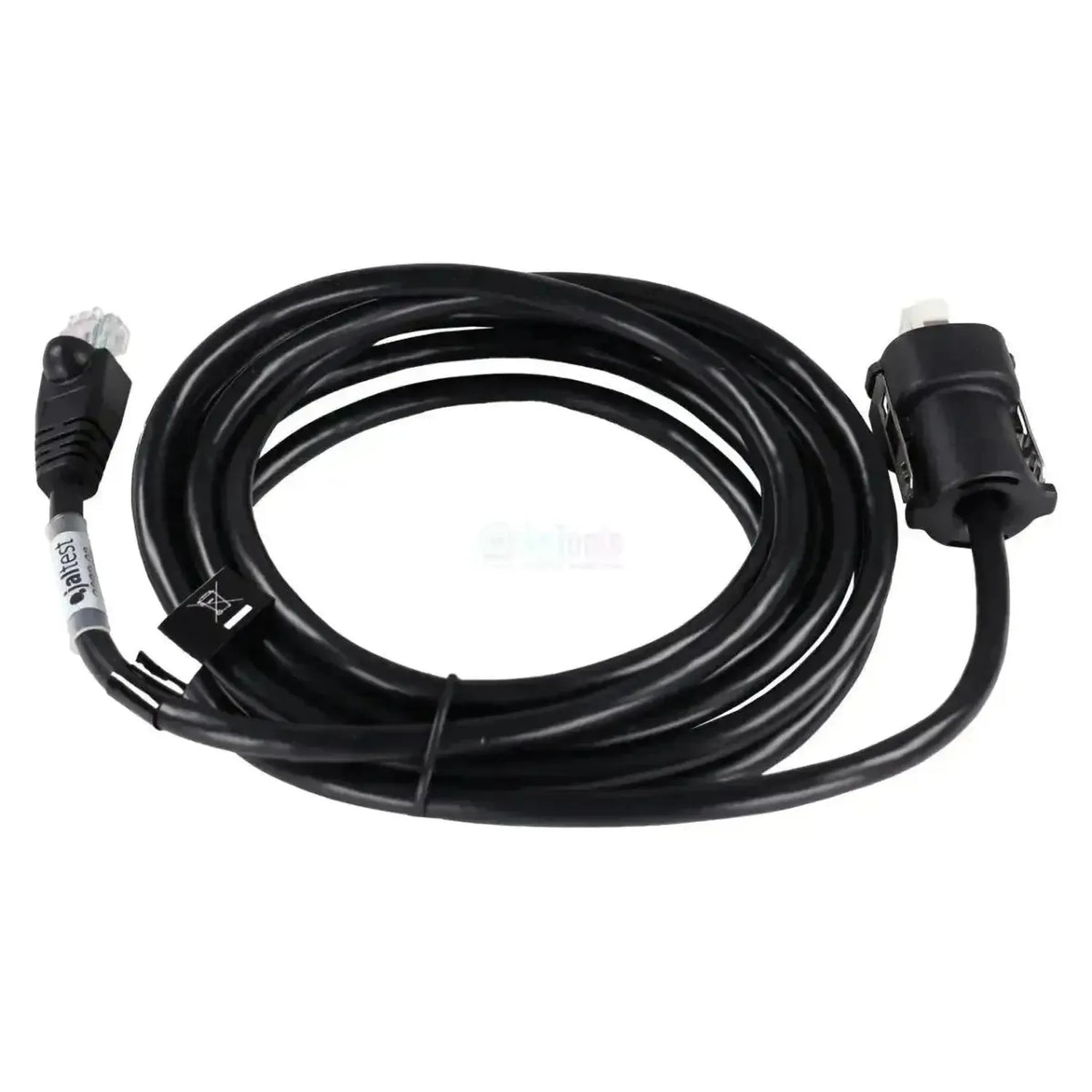

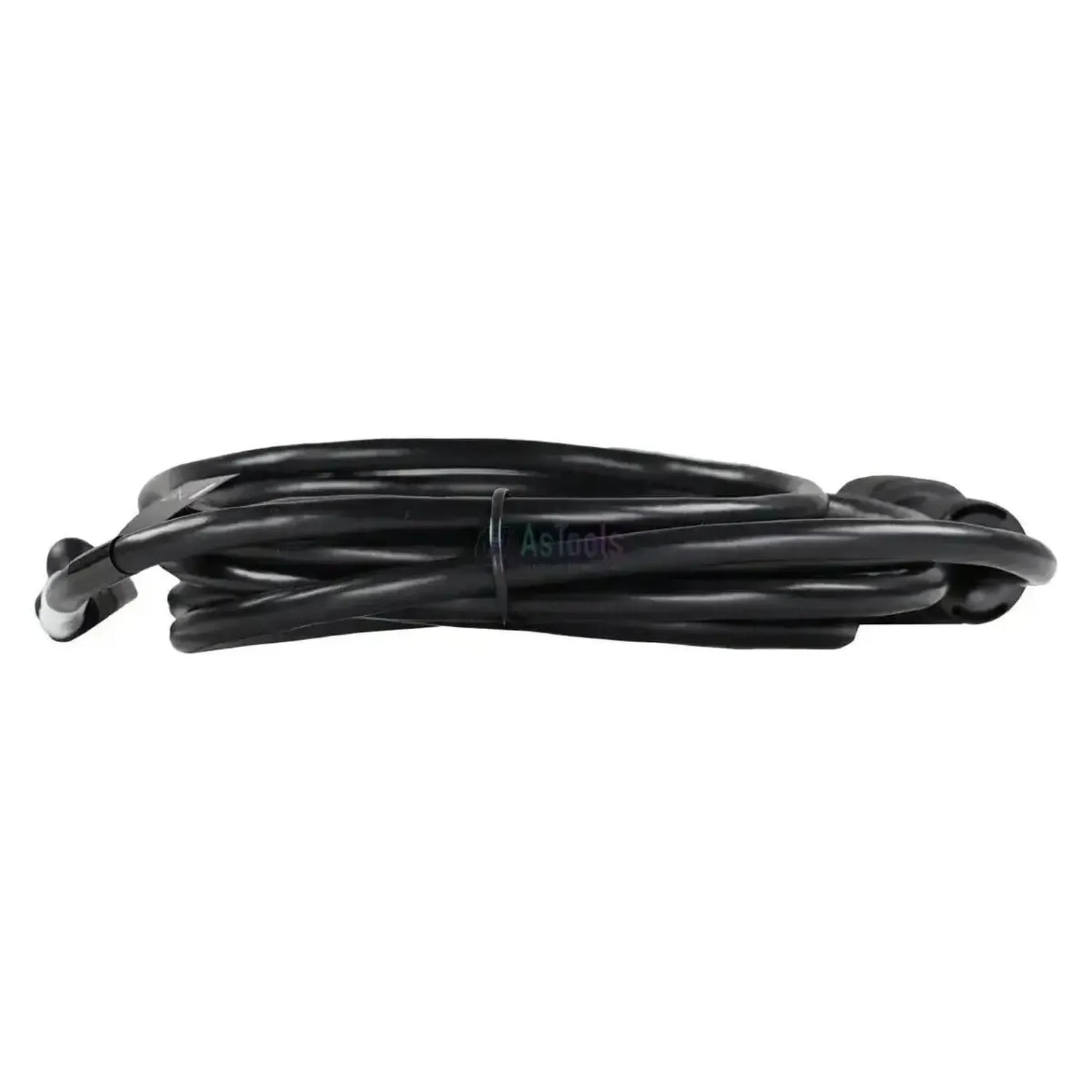

The Jaltest JDC563 is an Adapter Cable specifically designed to establish a diagnostic connection with Liebherr off-road and construction machines. This cable functions as a coupling for RJ45 network cables, allowing two cables with a male RJ45 connector to be connected. The design is focused on systems that use an Ethernet protocol for communication and diagnosis.
This adapter is used within the Jaltest Off-Highway (OHW) diagnostic system. It enables a stable network connection between the Jaltest diagnostic interface and the machine, which is necessary for performing functions such as reading fault codes, viewing live data, and performing calibrations. The JDC563 is often used in combination with other vehicle-specific cables to complete or extend the connection.
Application and functionality:
This Adapter Cable is developed to ensure a reliable Ethernet connection for diagnostic purposes on Liebherr machines.
- Diagnosis via Ethernet: Enables communication with Liebherr systems that use an RJ45 network connection for the diagnostic process.
- Cable coupling: Functions as a coupling to connect two male RJ45 network cables, which can serve as an extension of the total cable length.
- Connection point: Forms an essential connection point in the diagnostic chain between the vehicle and the Jaltest diagnostic equipment.
Compatible vehicles and applications:
This adapter is specifically designed for use with Liebherr off-road and construction machines equipped with a diagnostic port based on an Ethernet network connection.
Liebherr:
- Various off-road and construction machines: Compatible with models that use an RJ45 network connection for diagnosis.
Important: Before purchasing the product, always check your vehicle’s connection. This may vary depending on the model and year of manufacture.
Package Contents:
- 1x Jaltest (JDC563) | Liebherr RJ45 Network – RJ45 Network Adapter Cable | Off-Road and Construction Machine
Technical specifications:
| Specification | Description |
|---|---|
| Product Brand | Jaltest |
| Product Model | JDC563 |
| Connection 1 | RJ45 (Female) |
| Connection 2 | RJ45 (Female) |
