Yamaha 3+4+6-pins - 16-pins OBD2 Adapter Cable | Motorcycle

Name: Yamaha 3+4+6-pins - 16-pins OBD2 Adapter Cable | Motorcycle
Brand: AsTools
SKU: A0284-B / 3.12
Price: 12.36 EUR
Availability: OutOfStock

€12,36 incl.

Warranty directly via AsTools

We handle warranty cases ourselves, quickly and without involving the manufacturer. Thanks to our own parts inventory and technical expertise, we can usually assist you immediately. Only in exceptional cases do we still send the product to the supplier.

2 years warranty on all products

All our products come with a 2-year factory warranty. This ensures you long-lasting quality and service.

Easy returns

You can easily request your return through your account. We will send you the return label by email. Return shipping costs are your responsibility.

Professional customer service

Our experts are ready to help you quickly and professionally, both online and in our physical store. Questions? Feel free to contact us!

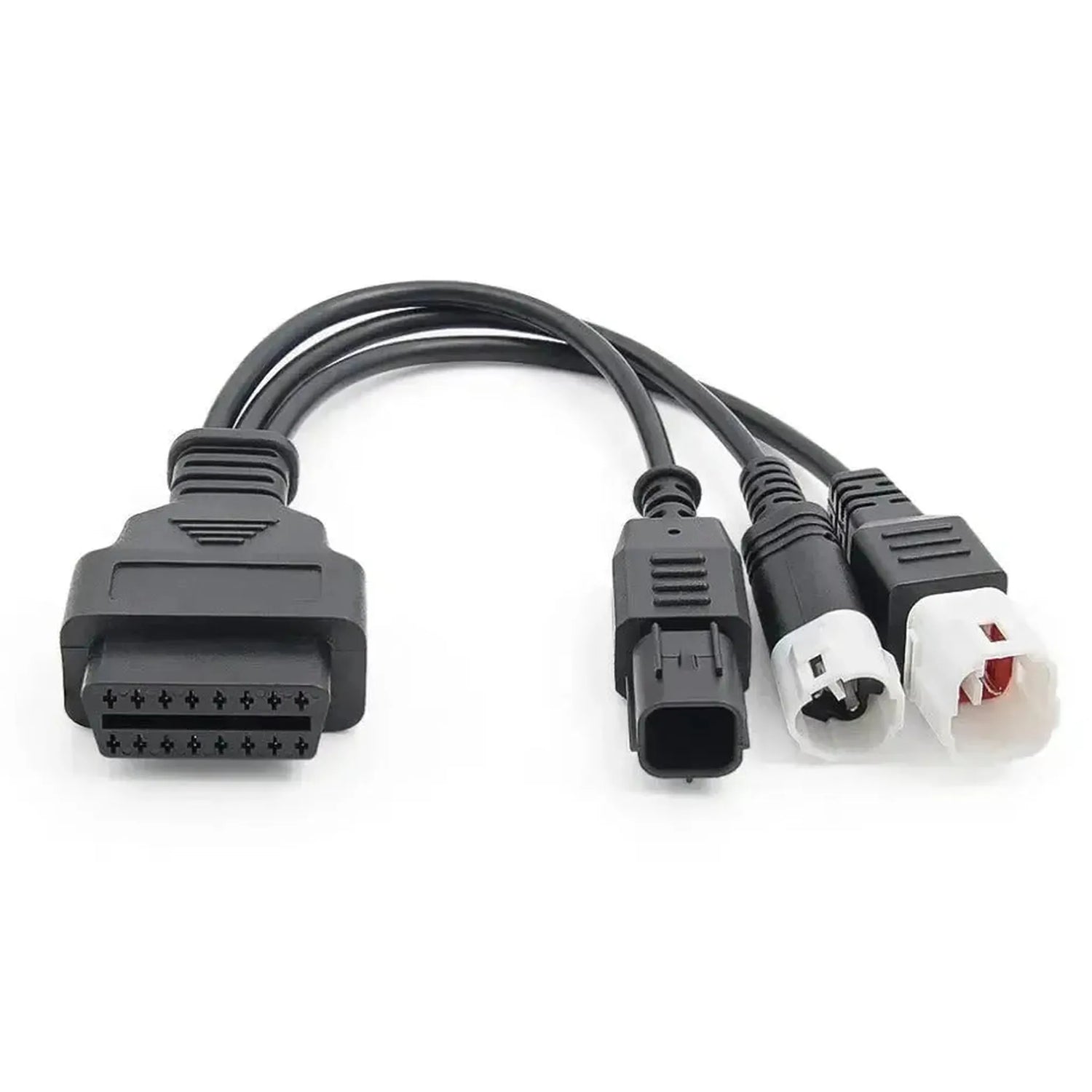

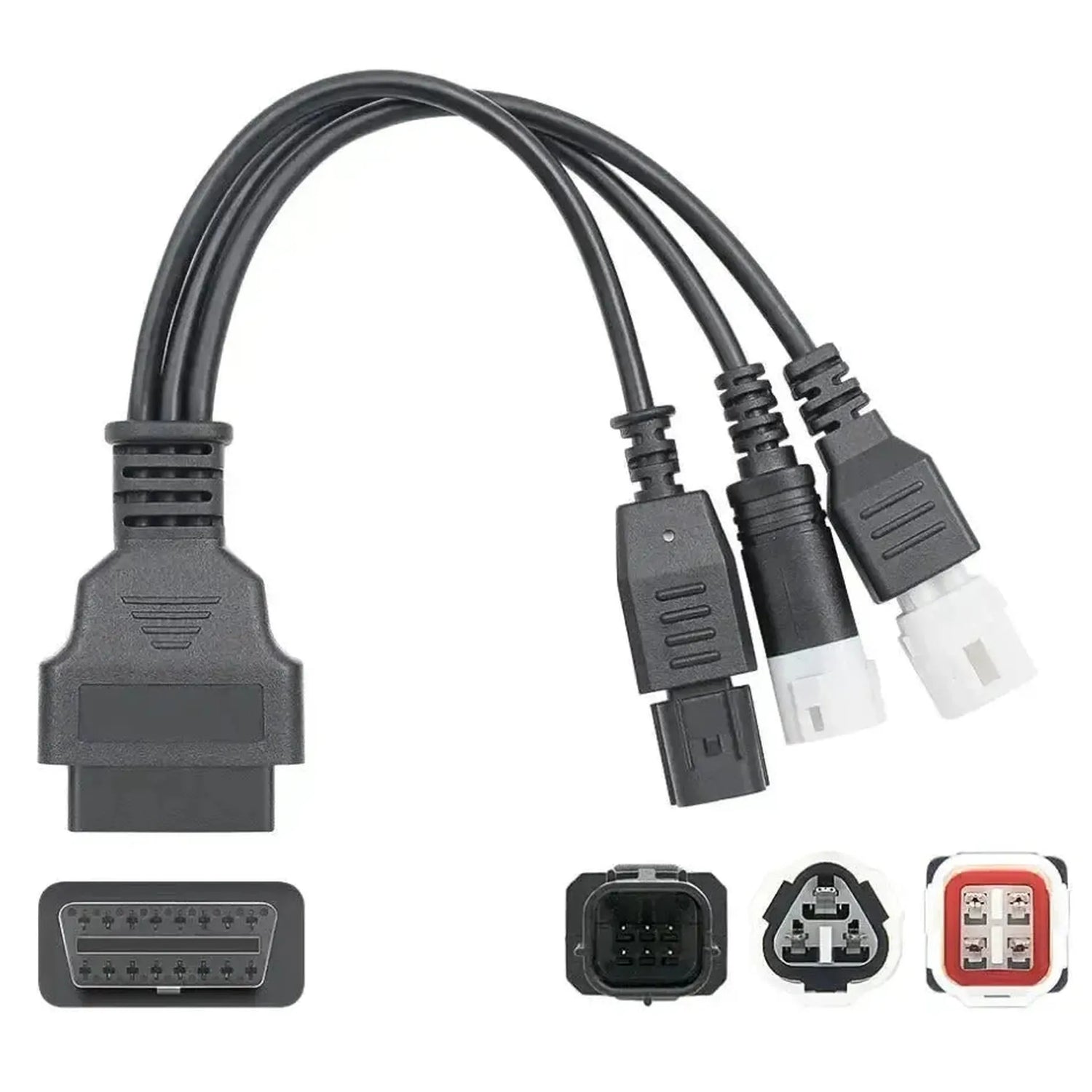

The Yamaha 3+4+6-pin to 16-pin OBD2 adapter cable is designed to connect a wide range of Yamaha motorcycles to universal diagnostic equipment. This adapter cable features three separate connectors on the vehicle side (3-pin, 4-pin, and 6-pin), allowing direct connection to the specific diagnostic port of various motorcycle models and generations.

Technically, this adapter acts as a bridge between the vehicle's internal communication networks, such as K-Line or CAN-bus, and the standardized ISO protocols of an OBD2 scanner. The internal wiring ensures correct conversion of the pin assignment, enabling stable signal transmission to the ECU for diagnosis and data analysis.

ADVANTAGES

✔ Combines three connector types for maximum compatibility with both older and newer models.

✔ Suitable for vehicles with Euro 3, Euro 4, and Euro 5 emission standards.

✔ Supports communication via both K-Line and CAN-bus protocols.

IMPORTANT NOTES

✕ This is a passive adapter cable and not a diagnostic device; a separate OBD2 scanner is required.

✕ The availability of specific sensor values depends on the used software and the motorcycle's ECU.

Applications and functionalities

This adapter cable makes it possible to create a standard OBD2 interface on Yamaha motorcycles. The actual functionality is determined by the connected diagnostic device.

Read fault codes: Retrieving active and stored diagnostic trouble codes (DTCs) from the engine management system.
Clear fault codes: Resetting the warning light on the dashboard after repair.
Live data display: Real-time monitoring of sensor values such as RPM, engine temperature, and throttle position.
ECU Identification: Reading software versions and hardware numbers of the control unit.

Compatible vehicles and applications

This cable is suitable for Yamaha motorcycles, scooters, and ATVs equipped with a 3-pin, 4-pin, or 6-pin diagnostic connector. The connectors cover different generations and emission standards.

Yamaha:

3-pin connector: Older models (often pre-2016) such as the YZF-R1, YZF-R6, FJR1300, and various scooters (K-Line communication).
4-pin connector: Models with Euro 4 specifications (approx. 2016-2020), including the MT-07, MT-09, Tracer 700/900, XSR700/900, and YZF-R1 (from 2016).
6-pin connector: Newer models with Euro 5 specifications (from around 2020), such as the latest generations of the MT series, Tracer, TMAX, and R series (ISO 19689 standard).

💡

Good to know: The diagnostic port is usually located under the seat, behind a side panel, or near the battery. Visually check in advance which connector your vehicle has.

Package Contents

1x Yamaha 3+4+6-pins - 16-pins OBD2 Adapter Cable | Motorcycle
